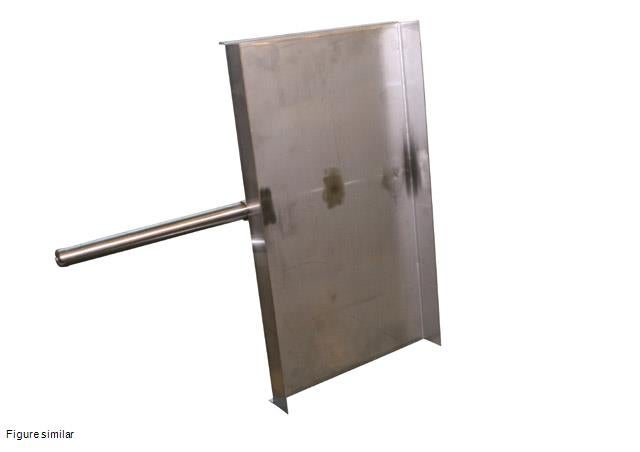

SITRANS Flowmeter sensing plates: sensing plates transfer the impact force to the sensing head of the flowmeter. Version: WF330, 40 t/h base mount or side mount Plate Size: 18" x 10" (457.2 x 254 mm), for WF330, 40 t/h with 2, 4 or 6" (50.8, 101.6 or 152.4 mm) flowguide Plate Material: 304 (1.4301) stainless steel Plate Liner: no liner .
SITRANS Flowmeter sensing plates: sensing plates transfer the impact force to the sensing head of the flowmeter. Version: WF330, 40 t/h base mount or side mount Plate Size: 20" x 12" (508 x 304.8 mm), for WF330, 40 t/h with 8" (203.2 mm) flowguide Plate Material: 304 (1.4301) stainless steel Plate Liner: no liner .
SITRANS Flowmeter sensing plates: sensing plates transfer the impact force to the sensing head of the flowmeter. Version: WF330, 40 t/h base mount or side mount Plate Size: 20" x 14" (508 x 355.6 mm), for WF330, 40 t/h with 10" (254 mm) flowguide Plate Material: 304 (1.4301) stainless steel Plate Liner: no liner .

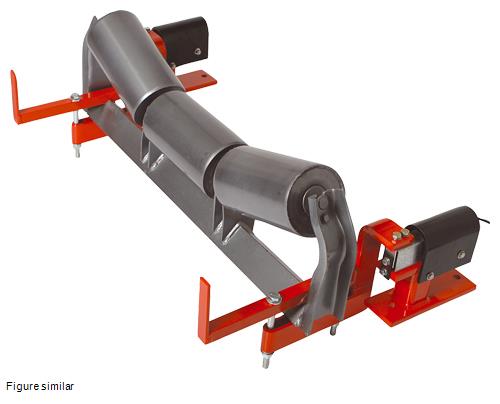

Milltronics MUS Belt scale: accuracy is ± 0.5 to 1% of totalization over 25 … 100 % operating range with capacity up to 5 000 t/h (5 512 STPH). Scale construction: Standard for belt width up to 1000 mm (42"), nickel plated steel load cells Load cell capacity: 30 kg Fabrication: Polyester painted mild steel .
Milltronics MUS Belt scale: accuracy is ± 0.5 to 1% of totalization over 25 … 100 % operating range with capacity up to 5 000 t/h (5 512 STPH). Scale construction: Standard for belt width up to 1000 mm (42"), nickel plated steel load cells Load cell capacity; 50 kg Fabrication: Polyester painted mild steel .

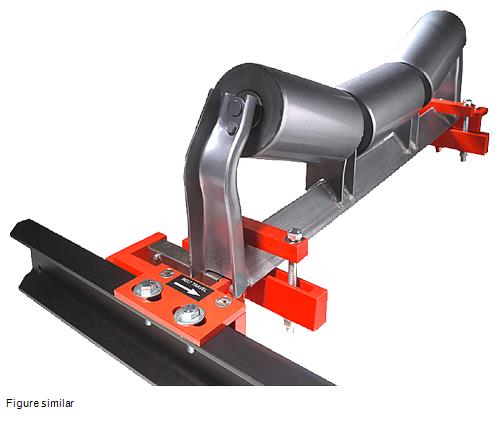

Milltronics MCS Belt scale: accuracy is ± 0.5 … 1 % of totalization over 25 … 100 % operating range with capacity up to 2 400 t/h (2 640 STPH). Scale Construction: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, RCM, EAC, KC Load Cell Capacity: 50 lb (22.7 kg), 17-4 PH (1.4568) stainless steel construction with 304 (1.4301) stainless steel cover Fabrication: Polyester painted mild steel System specification: standard
Milltronics MCS Belt scale: accuracy is ± 0.5 … 1 % of totalization over 25 … 100 % operating range with capacity up to 2 400 t/h (2 640 STPH). Scale Construction: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, RCM, EAC, KC Load Cell Capacity: 100 lb (45.5 kg), 17-4 PH (1.4568) stainless steel construction with 304 (1.4301) stainless steel cover Fabrication: Polyester painted mild steel System specification: standard
Milltronics MCS Belt scale: accuracy is ± 0.5 … 1 % of totalization over 25 … 100 % operating range with capacity up to 2 400 t/h (2 640 STPH). Scale Construction: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, RCM, EAC, KC Load Cell Capacity: 100 lb (45.5 kg), 17-4 PH (1.4568) stainless steel construction with 304 (1.4301) stainless steel cover Fabrication: Polyester painted mild steel, for use with flat bar calibration System specification: standard
Milltronics MCS Belt scale: accuracy is ± 0.5 … 1 % of totalization over 25 … 100 % operating range with capacity up to 2 400 t/h (2 640 STPH). Scale Construction: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, RCM, EAC, KC Load Cell Capacity: 250 lb (113.6 kg), 17-4 PH (1.4568) stainless steel construction with 304 (1.4301) stainless steel cover Fabrication: Polyester painted mild steel System specification: standard

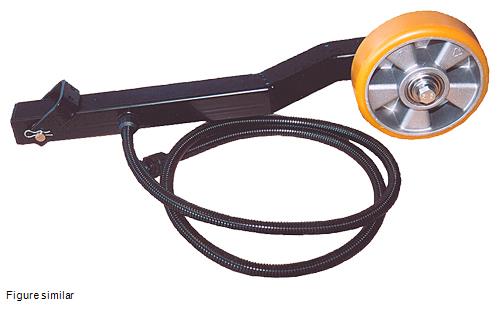

Milltronics TASS Speed sensor: return belt mounted, 25 … 350 rpm, with 9.947 pulses/m (3.03 pulses/ft). Model: 5 pulses per revolution Fabrication: Standard polyester painted mild steel Mounting options: Complete with standard mounting kit Approval: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, RCM, EAC, KC .

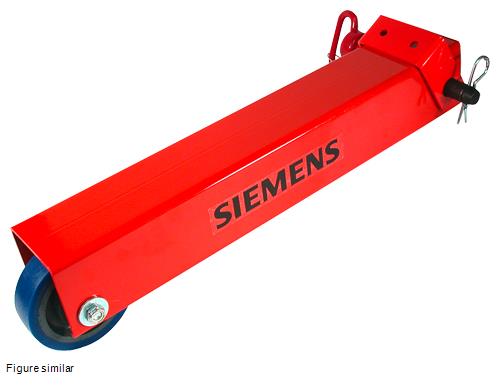

Milltronics RBSS Speed sensor: return belt mounted, 2 … 450 rpm, with 150.4 pulses/m (4.58 pulses/ft). Model: 60 pulses per revolution Fabrication: Standard polyester painted mild steel Mounting options: With mounting kit Approvals: CE, UKCA, RCM, EAC, KC Switch Isolator: not required

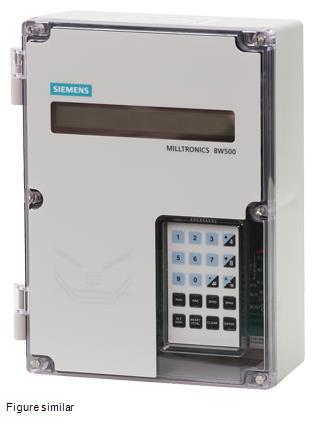

Milltronics BW500 and BW500/L Integrator: full-feature, powerful integrator designed for use with both belt scales and weighfeeders. Input voltage: AC voltage 100-240V Auxiliary Input / Output Board: None Feature Software: BW500, 1 ... 6 load cell input (advanced feature set) Auxiliary Memory: none Data Communications: Smartlinx Ready Enclosure: standard enclosure, no entry holes Trade approval sticker: No trade approval sticker Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, CCSAUS, FM, RCM, EAC, KC
Milltronics BW500 and BW500/L Integrator: full-feature, powerful integrator designed for use with both belt scales and weighfeeders. Input voltage: AC voltage 100-240V Auxiliary Input / Output Board: None Feature Software: BW500, 1 ... 6 load cell input (advanced feature set) Auxiliary Memory: none Data Communications: Smartlinx Ready Enclosure: Standard enclosure, 4 entries, M20 Trade approval sticker: No trade approval sticker Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, CCSAUS, FM, RCM, EAC, KC
Milltronics BW500 and BW500/L Integrator: full-feature, powerful integrator designed for use with both belt scales and weighfeeders. Input voltage: AC voltage 100-240V Auxiliary Input / Output Board: None Feature Software: BW500/L, 1... 2 load cell input (basic feature set) Auxiliary Memory: none Data Communications: Smartlinx Ready Enclosure: standard enclosure, no entry holes Trade approval sticker: No trade approval sticker Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, CCSAUS, FM, RCM, EAC, KC
Milltronics BW500 and BW500/L Integrator: full-feature, powerful integrator designed for use with both belt scales and weighfeeders. Input voltage: AC voltage 100-240V Auxiliary Input / Output Board: None Feature Software: BW500/L, 1... 2 load cell input (basic feature set) Auxiliary Memory: none Data Communications: Smartlinx Ready Enclosure: Standard enclosure, 4 entries, M20 Trade approval sticker: No trade approval sticker Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, CCSAUS, FM, RCM, EAC, KC
Milltronics BW500 and BW500/L Integrator: full-feature, powerful integrator designed for use with both belt scales and weighfeeders. Input voltage: AC voltage 100-240V Auxiliary Input / Output Board: None Feature Software: BW500/L, 1... 2 load cell input (basic feature set) Auxiliary Memory: none Data communication: Smartlinx ProfiNet module Enclosure: Standard enclosure, 4 entries, M20 Trade approval sticker: No trade approval sticker Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, CCSAUS, FM, RCM, EAC, KC
Milltronics BW500 and BW500/L Integrator: full-feature, powerful integrator designed for use with both belt scales and weighfeeders. Input voltage: AC voltage 100-240V Auxiliary Input / Output Board: Board with 2 analog inputs and 2 analog outputs (required for PID control and on-line calibration) Feature Software: BW500, 1 ... 6 load cell input (advanced feature set) Auxiliary Memory: none Data Communications: Smartlinx Ready Enclosure: Standard enclosure, 4 entries, M20 Trade approval sticker: No trade approval sticker Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, CCSAUS, FM, RCM, EAC, KC

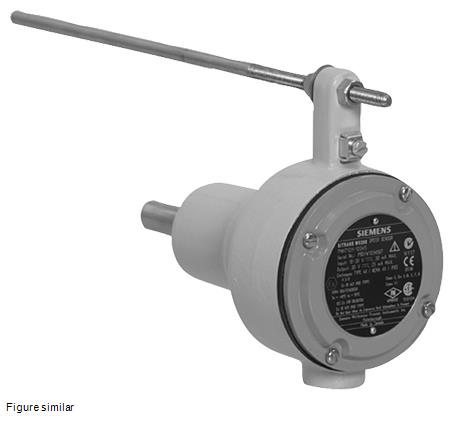

SITRANS WS300 Speed sensor: shaft mounted, 0.3 … 2 000 rpm, with up to 2 000 pulses per revolution. Resolution: 32 PPR Enclosure: Polyester painted aluminum, NEMA 4X Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, RCM, EAC, KC Connections: Standard, up to 2 integrators Switch Isolator: Not required .
SITRANS WS300 Speed sensor: shaft mounted, 0.3 … 2 000 rpm, with up to 2 000 pulses per revolution. Resolution: 256 PPR Enclosure: Polyester painted aluminum, NEMA 4X Approvals: CSA/FM Class II, Div. 1, Groups E, F, G, Class III; ATEX II 2D, Ex tb IIIC T70°C Db; UKEX II 2D, Ex tb IIIC T70°C Db; IECEx Ex tb IIIC T70°C Db; EAC Ex Ex tb IIIC T70°C Db X; NEPSI Ex tD A21 IP65 T70°C; CCC, RCM, KC Connections: Standard, up to 2 integrators Switch Isolator: Not required .
SITRANS WS300 Speed sensor: shaft mounted, 0.3 … 2 000 rpm, with up to 2 000 pulses per revolution. Resolution: 256 PPR Enclosure: Polyester painted aluminum, NEMA 4X Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, RCM, EAC, KC Connections: Standard, up to 2 integrators Switch Isolator: Not required .
SITRANS WS300 Speed sensor: shaft mounted, 0.3 … 2 000 rpm, with up to 2 000 pulses per revolution. Resolution: 256 PPR Enclosure: Polyester painted aluminum, NEMA 4X Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, RCM, EAC, KC Connections: Multiple, up to 10 integrators Switch Isolator: Not required .

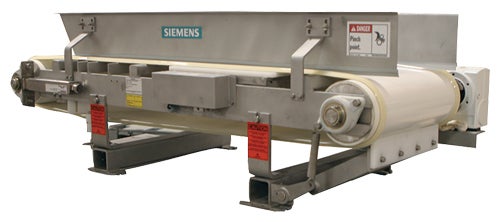

SITRANS WW200 Weighfeeder, painted mild steel, open style: with capacity up to 120 m³/h (4 237 ft³/h). Construction: 18" (457mm) Belt Width, 52" (1321mm) C/L Infeed to C/L Discharge (2 legs) Material containment: Horseshoe style, stainless steel 1.4301/304 Load Cells: 6 kg (13.2 lb) Stainless steel, Hermetically sealed Speed sensor: 1000 PPR shaft mounted optical encoder, stainless steel Drive configuration: AC motor, Aluminum, food grade style, 0.5 HP (0.37 KW), 220-240/380-480V 3ph 50/60 Hz Belting: Polyurethane, 2 ply, certified Food Compliance Belt change access side (looking from inlet to discharge): Left hand Manufacturer's Test Certificate: According to EN 10204-2.2 Application data: Enter design units (TPH,MTPH, lbs/h, kg/h) Application data: Enter design speed (ft/m, m/s) Application data: Enter design capacity/rate AC gearmotor reduction ratio: Enter reduction ratio in plain text (X:1) AC gearmotor electrical style: enter IEC, UL-R/CSA or CCC
SITRANS WW200 Weighfeeder, 304 stainless steel, open style: with capacity up to 120 m³/h (4 237 ft³/h). Construction: 24" (610mm) Belt Width, 52" (1321mm) C/L Infeed to C/L Discharge (2 legs) Material containment: Horseshoe style, stainless steel 1.4301/304 Load Cells: 12 kg (26.5 lb) Stainless steel, Hermetically sealed Speed sensor: 1000 PPR shaft mounted optical encoder, stainless steel Drive configuration: AC motor, Aluminum, food grade style, 0.5 HP (0.37 KW), 220-240/380-480V 3ph 50/60 Hz Belting: Polyurethane, 2 ply, certified Food Compliance Belt change access side (looking from inlet to discharge):Right hand Manufacturer's Test Certificate: According to EN 10204-2.2 Blue colored belt, anti-static, 2 ply, FDA approved Application data: Enter design units (TPH,MTPH, lbs/h, kg/h) Application data: Enter design speed (ft/m, m/s) Application data: Enter design capacity/rate AC gearmotor reduction ratio: Enter reduction ratio in plain text (X:1) AC gearmotor electrical style: enter IEC, UL-R/CSA or CCC
LVDT Conditioner in Nema 4 enclosure for BW100/BW500/SF500 (to interface LVDT flowmeter without internal pre-amplifier)
Switch, inductive, NJO.8-5GM-N for RBSS IS (Approvals selection 2)
